800H can resist corrosion of many corrosive media. Its high nickel content makes it have good stress corrosion cracking resistance under water-based corrosion conditions. The high chromium content makes it have better resistance to pitting corrosion and crevice corrosion cracking. The alloy has good corrosion resistance to nitric acid and organic acids, but has limited corrosion resistance in sulfuric acid and hydrochloric acid. In addition to the possibility of pitting corrosion in halides, it has good corrosion resistance in oxidizing and non-oxidizing salts. It also has good corrosion resistance in water, steam and the mixture of steam, air and carbon dioxide.

Incoloy® 800 application field

• Nitric acid condenser-resistant to nitric acid corrosion

•Steam heating tube-good mechanical properties

•Heating element tube-good mechanical properties

Incoloy®800H can produce the following products

pipe,ring,Sleeve

Incoloy®800H pipe fitting Production specifications:

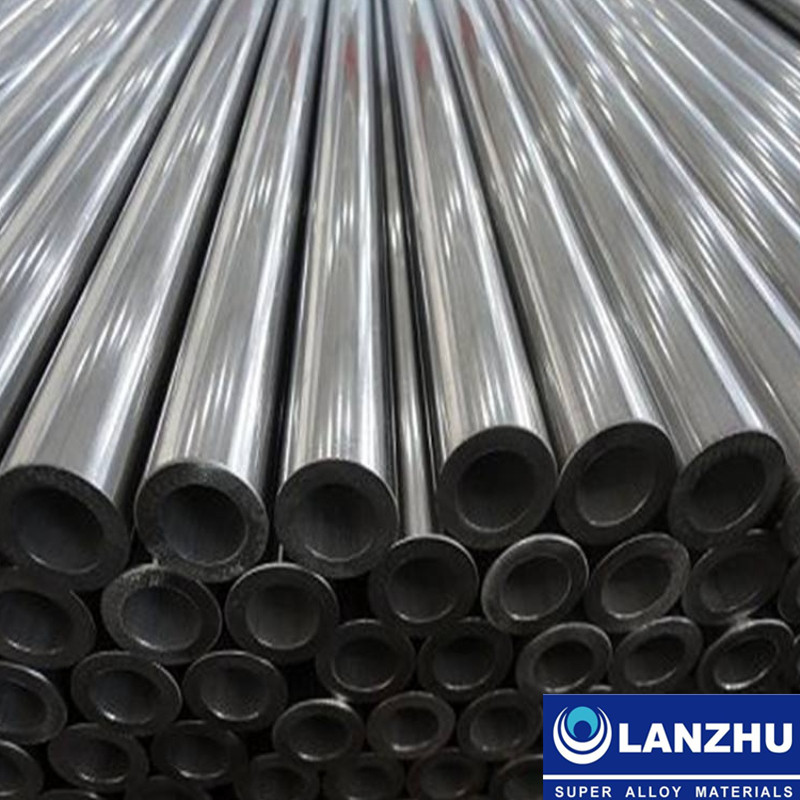

• Pipe: outer diameter (6-350) mm* inner diameter (0.10-120) mm* ≤8000mm

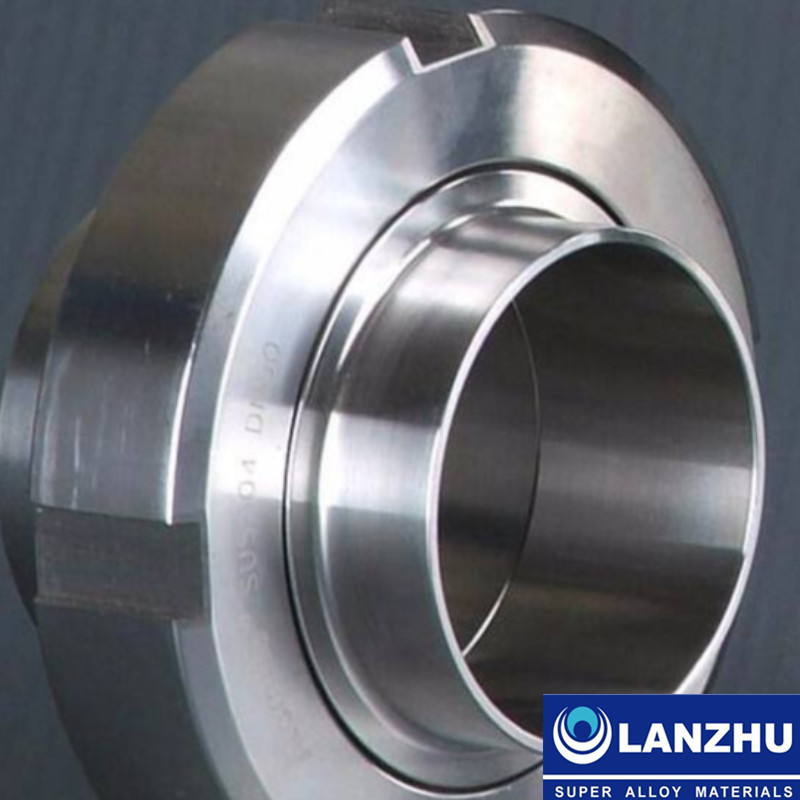

• Sleeve: external diameter: 50mm

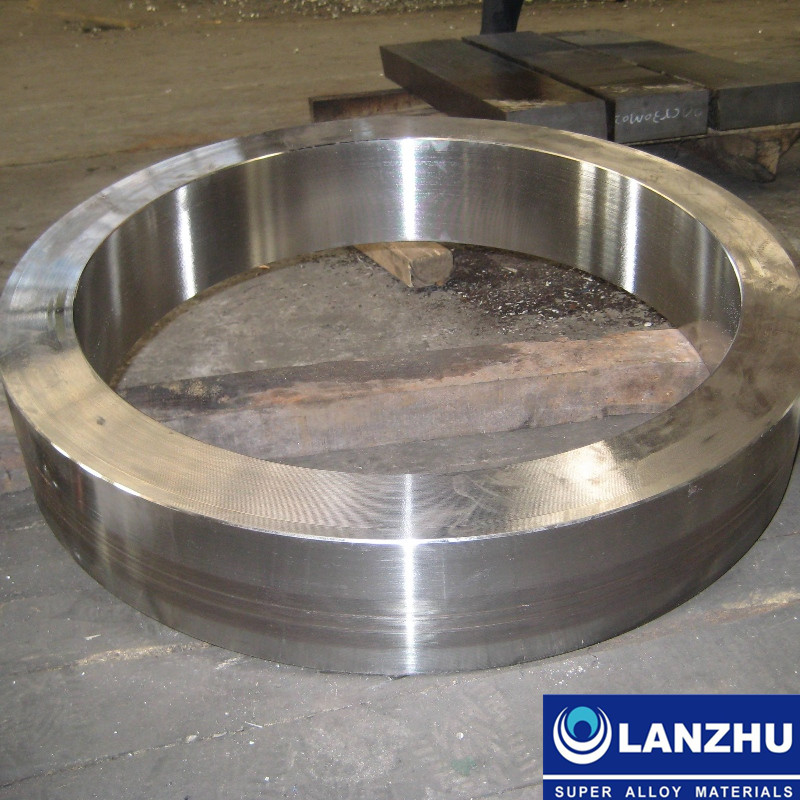

• Ring:Diameter 150mm- 1500,Length 100-2000mm
